Dual Faced Lapping and Polishing Machines
The Lapmaster DL line of dual face machines is based upon a 3-way, planetary concept designed to yield precise and repeatable results at an economical price. Excellent results have been obtained in the processing of a wide range of materials and components including glass, ceramics, crystals, and ferrous materials.

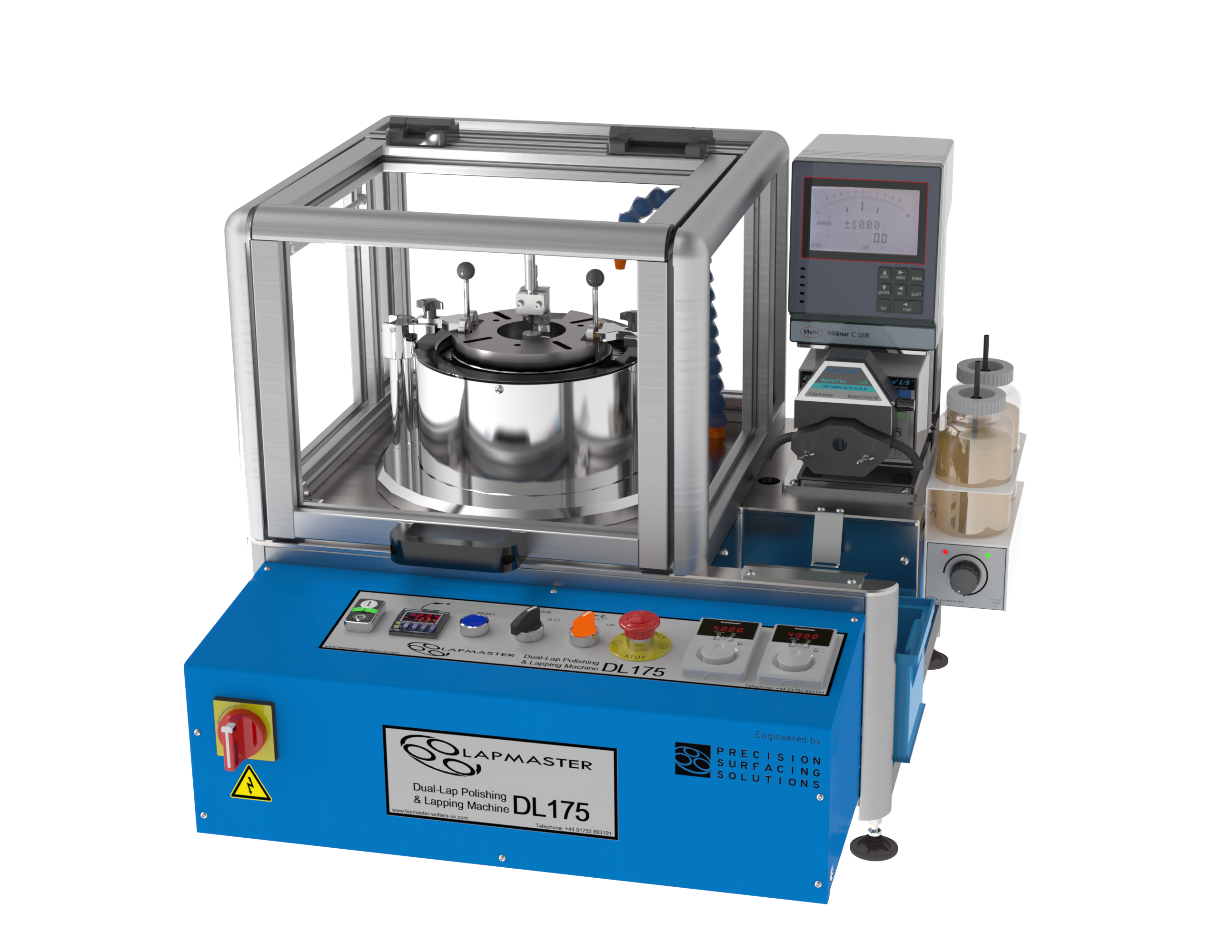

DL175 Dual Faced Lapping and Polishing Series Machines
The Dual-Lap 175 is a small but versatile bench mounted machine ideally suited for small workshops and laboratories.
This Lapmaster line of dual face lapping/polishing machines are based upon a two way planetary concept designed to yield very precise and repeatable results at an economical price. Excellent results have been obtained in the processing of a wide range of materials and components including glass, ceramics, crystals and ferrous materials.
Only the Inner and Outer Gears rotate allowing the carriers to move around the surface of the stationary plates.
The machine is designed to Lap and Polish components on a 5 carrier format (51mm OD max component size, 20mm thick max) the components are placed in an offset position in the carrier to ensure full coverage of the lapping plate.
The machine structure comprises of a lightweight aluminium extrusion base which carries the main drive components and the drive motors.
The machine has two drive motors, each separately and independently controlled. Each Drive System is mounted in fully sealed ball race bearings to allow the smooth running of the carriers.

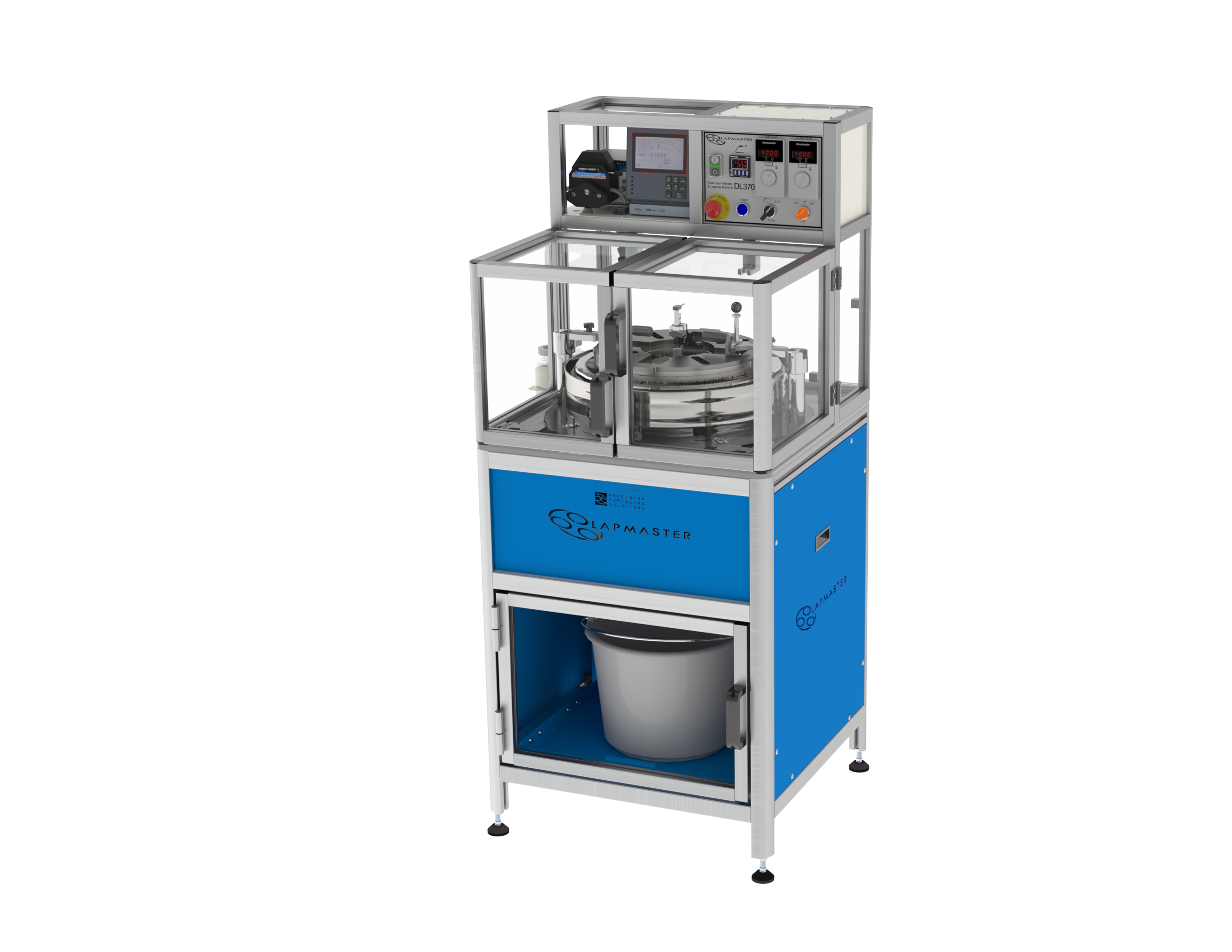

DL370 Dual Faced Lapping and Polishing Series Machines
The Dual-Lap 370 is a small but versatile floor standing machine ideally suited for small workshops and laboratories.
This Lapmaster line of dual face lapping/ polishing machines are based upon a two way planetary concept designed to yield very precise and repeatable results at an economical price. Excellent results have been obtained in the processing of a wide range of materials and components including glass, ceramics, crystals and ferrous materials. Only the Inner and Outer Gears rotate allowing the carriers to move around the surface of the stationary plates.
The machine is designed to Lap and Polish components on a 5 carrier format (114mm OD max component size, 30mm thick max) the components are placed in an offset position in the carrier to ensure full coverage of the lapping plate.
The machine structure comprises of a lightweight aluminium extrusion base which carries the main drive components and the drive motors.
The machine has two drive motors, each separately and independently controlled. Each Drive System is mounted in fully sealed ball race bearings to allow the smooth running of the carriers.
Optional Features
- Automatic sizing
- Abrasive delivery system with agitator

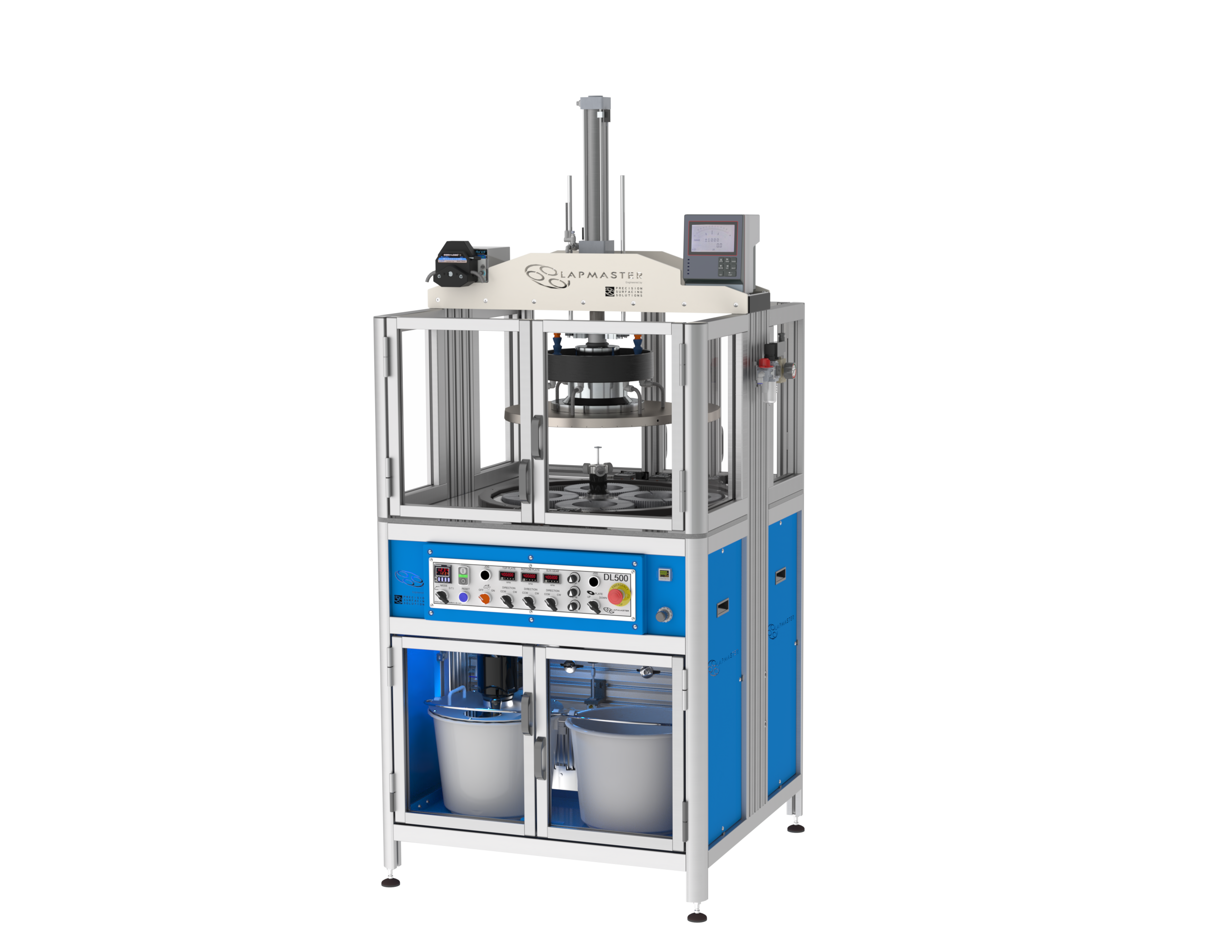

DL500 Dual Faced Lapping and Polishing Series Machine
The Lapmaster Wolters DL500 machine is a small but versatile floor standing machine ideally suited for small workshops and laboratories. The Lapmaster Wolters line of Dual-Lap lapping/polishing machines are based upon a 3-way planetary concept designed to yield very precise and repeatable result at an economical price. Excellent results have been obtained in the processing of a wide range of delicate materials and components including glass, ceramics, crystals and metallic materials. The Sun Gear, Top & Bottom plates rotate allowing for precise flatness and parallelism control. The top plate pressure is fully adjustable between 1% and 100% of top plate weight to be applied onto the components
CARRIER ARRANGEMENT
The machine is designed to Lap and Polish components on a 4 carrier format (170mm max component size, 40mm thick) the components are placed in an offset position in the carrier to ensure full coverage of the lapping plate.
